Panel Options & How to Order...

Building Dimensions & Flashing Order Form

In order to complete your project, we will need to know the (A) Building Dimensions and (B) Flashings your project requires. Follow the steps below to use our colour coded, easy to use order form…
  1. Download the order form via the button below.
  2. Use guides to work out: (A) Building Dimensions.
  3. Use guides to work out: (B) Flashing.
  4. Complete the form and return it to us via email: grantlife1@gmail.com
Download Order Form

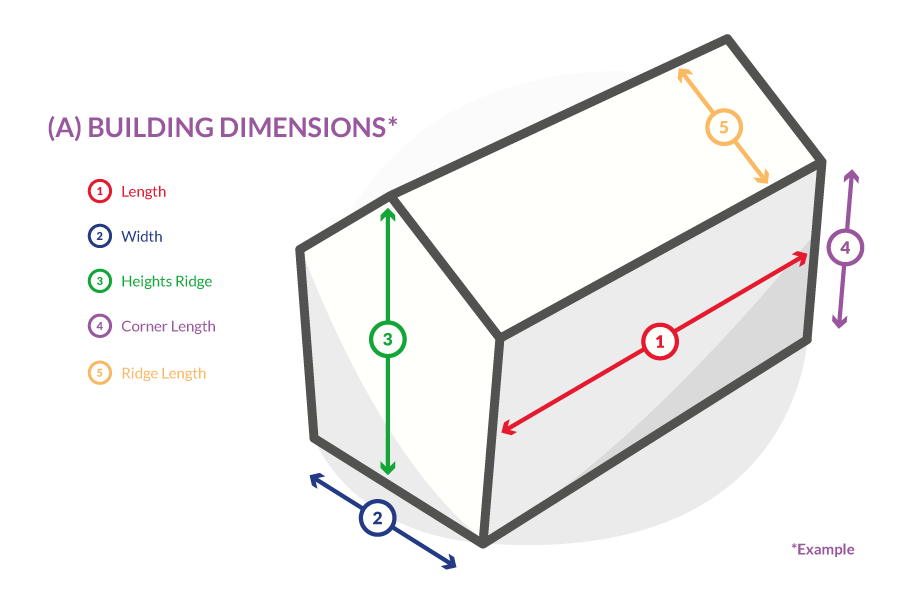

Dimensions for measuring up for roofing cladding or panels, cladding or construction panels.

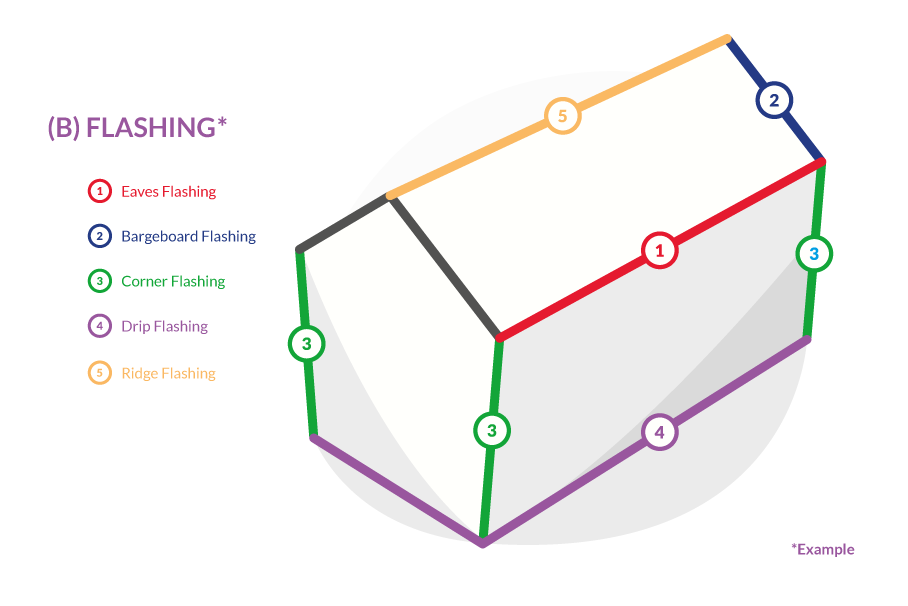

Dimensions for measuring your flashing for measuring up for roofing cladding or panels, cladding or construction panels.

Insulated Panel Options

A – Flat Profile

Flat wall panel cladding profile
Smooth finished no profile
(across the full width).

Flat Profile Example:

smooth wall panelling cladding minibead profile side on design

B – Satin Line Profile

Corrugated cladding minibead profiling
20mm wide profiles
(across the full width).

Satin Line Profile Example:

Corrugated external wall cladding minibead profile side on design

C – Minibead Profile

Corrugated cladding minibead profiling
From 150mm to 300mm wide profiles
(across the full width).

Minibead Profile Example:

Corrugated wall panelling minibead profile side on design
